Cleaning Section | Destoner Classifier HSTKTD

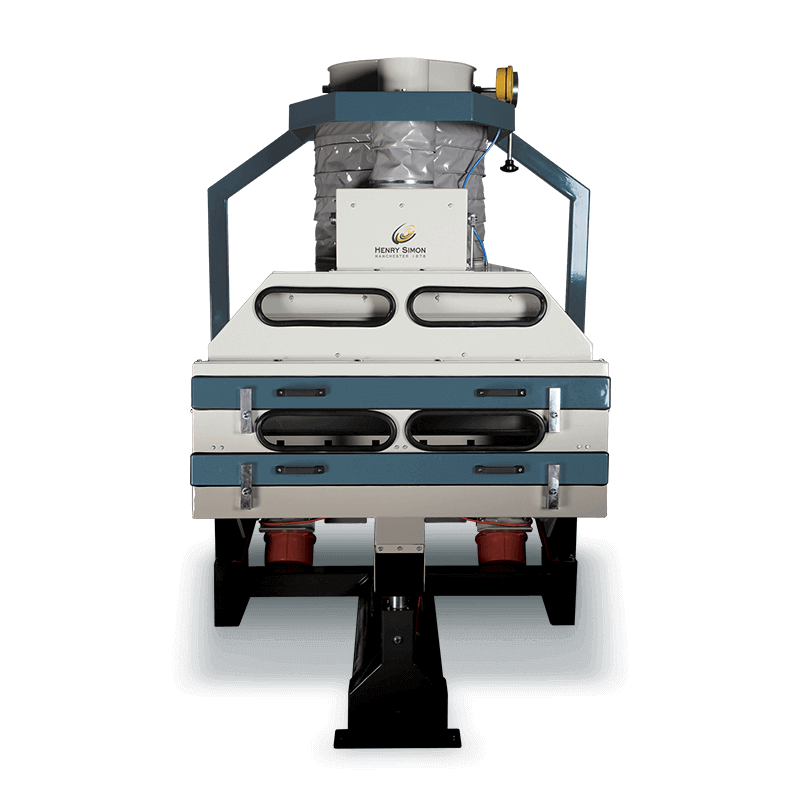

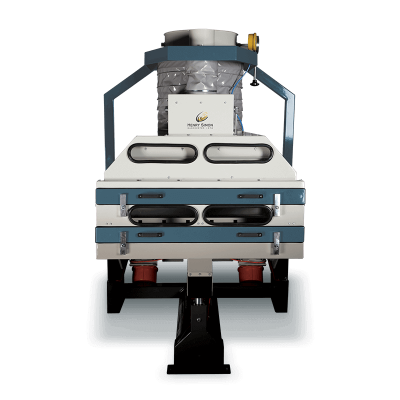

The Destoner Classifier (HSTKTD) is used for removal of the stones, metal particles, and mud balls etc. from the grain. It is also practically used to sort the grain into heavy and light fractions by aspiration.

Features & Advantages

• Easy and quick screen replacement
• Durability and long life span
• Precise adjustment of screen inclination and air flow rate

Technical Sheet Picture

Technical Features
Model	* Capacity (TPH)	Motor Power (kW)	Air Requirement (m³/min)	Weight (Kg)		Gross Volume (m³)
Model	* Capacity (TPH)	Motor Power (kW)	Air Requirement (m³/min)	Net	Gross	Gross Volume (m³)
HSTKTD 80	8	2x0.35	80	570	633	5.9
HSTKTD 120	16	2x0.68	120	650	732	7.7
HSTKTD 180	24	2x1.1	230	790	899	10.3

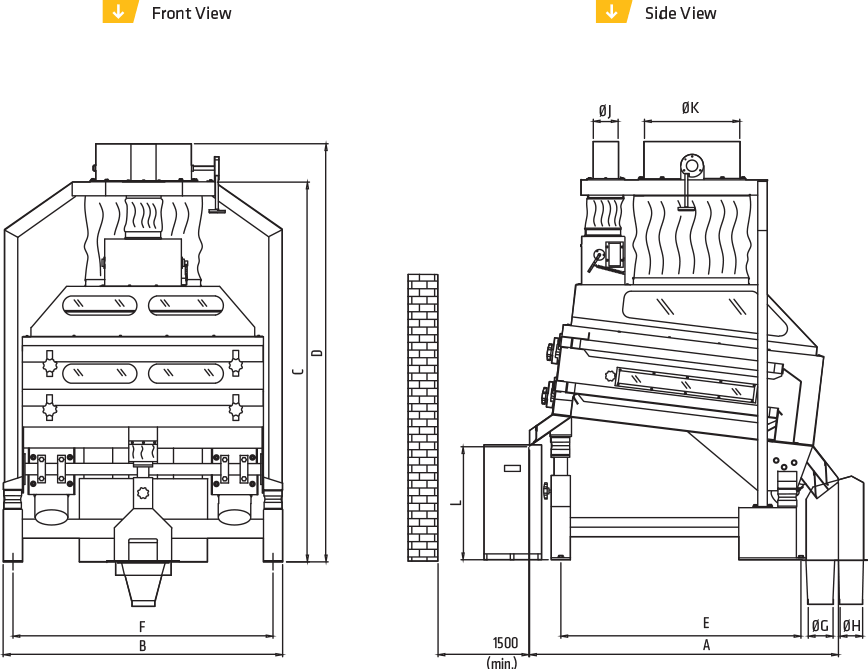

Dimensions (mm)
Model	A	B	C	D	E	F	øG	øH	øJ	øK	L
HSTKTD 80	1,610	1,050	2,000	2,200	1,257	950	121	121	120	400	500
HSTKTD 120		1,450				1,356	133	121	150	500
HSTKTD 180		2,000				1,900	192	150	200	600

* Capacities are given based on wheat with the spesific gravity of 0.78-0.80 kg/dm³, and they can change depending on the variety, initial condition and contamination of product.

Please contact us for further information.
