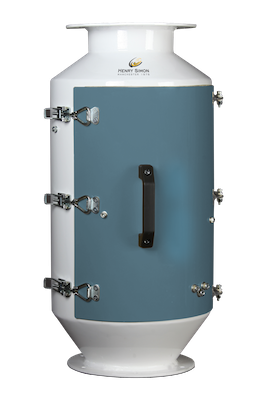

Tubular Magnet is used for the elimination of metal particles from product during the flow. It is an in-line magnetic seperator which is installed on spouting lines.
|
Technical Features
|
||||||||
|---|---|---|---|---|---|---|---|---|
| MODEL | Capacity (t/h) | Weight (kg) | Gross Volume | |||||
| Wheat | Flour | Bran | Semolina | Gause | Net | Gross | ||
| HSKDMB 120 | 10 | 7 | 4 | 9 | 2300 | 65 | 95 | 0,02 |
| HSKDMB 150 | 17 | 13 | 7 | 15 | 2500 | 75 | 107 | 0,026 |
| HSKDMB 170 | 33 | 24 | 13 | 29 | 3000 | 90 | 124 | 0,031 |
| HSKDMB 200 | 46 | 34 | 18 | 40 | 3600 | 100 | 140 | 0,051 |
| HSKDMB 250 | 83 | 61 | 33 | 72 | 4500 | 122 | 170 | 0,063 |
| HSKDMB 300 | 125 | 92 | 50 | 108 | 5100 | 140 | 200 | 0,10 |
|
Dimensions (mm)
|
|||||
|---|---|---|---|---|---|
| MODEL | A | ØB | C | ØH | ØJ |
| HSKDMB 120 | 315 | 280 | 650 | 120 | 120 |
| HSKDMB 150 | 335 | 300 | 650 | 150 | 150 |
| HSKDMB 170 | 355 | 320 | 680 | 170 | 170 |
| HSKDMB 200 | 415 | 380 | 720 | 200 | 200 |
| HSKDMB 250 | 445 | 410 | 900 | 250 | 250 |
| HSKDMB 300 | 516 | 480 | 900 | 300 | 300 |
