Handling Section

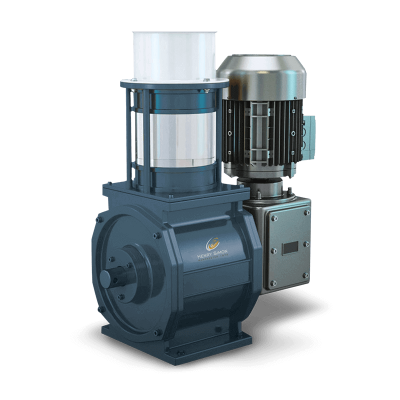

The Airlock-S is used in pneumatic conveying lines, mainly with bag filters and cyclone separators. It works under negative pressure and provides an air seal against product leakage.
|
Technical Features
|
||||||
|---|---|---|---|---|---|---|
| Model | Capacity (TPH) | Weight (Kg) |
Gross Volume (m3) |
|||
| Wheat | Flour | Bran | Net | Gross | ||
| HSKHKM - 25/21 | 6.04 | 4.35 | 2.41 | 56.5 | 81 | 0.1 |
| HSKHKM - 25/27 | 8.42 | 6.06 | 3.37 | 61 | 88 | |
| HSKHKM - 25/33 | 10.76 | 7.75 | 4.30 | 75.5 | 104 | |
|
Technical Features
|
||||||
|---|---|---|---|---|---|---|
| Model | Weight (Kg) |
Gross Volume (m3) |
||||
| Net | Gross | |||||
| HSKHKM - 22/27 | 56 | 81 | 0.3 | |||
| HSKHKM - 25/33 | 61 | 95 | 0.4 | |||
| HSKHKM - 35/40 | 66 | 104 | 0.5 | |||
| HSKHKM - 45/45 | 72 | 110 | 0.9 | |||
| HSKHKM - 50/50 | 90 | 125 | 1.1 | |||
| HSKHKM - 60/60 | 100 | 135 | 1.5 | |||
|
Dimensions (mm)
|
||||||
|---|---|---|---|---|---|---|
| Model | A | B | C | E | F | G |
| HSKHKM - 25/21 | 368 | 280 | 320 | 275 | 260 | 210 |
| HSKHKM - 25/27 | 430 | 337 | 272 | |||
| HSKHKM - 25/33 | 490 | 398 | 333 | |||
|
Dimensions (mm)
|
||||||
|---|---|---|---|---|---|---|
| Model | A | B | C | D | E | |
| HSKHKM - 22/27 | 330 | 670 | 320 | 270 | 263 | |
| HSKHKM - 25/33 | 550 | 700 | 320 | 330 | 263 | |
| HSKHKM - 35/40 | 430 | 820 | 420 | 400 | 365 | |
| HSKHKM - 45/45 | 800 | 800 | 525 | 450 | 465 | |
| HSKHKM - 50/50 | 1,000 | 850 | 550 | 500 | 513 | |
| HSKHKM - 60/60 | 1,000 | 950 | 650 | 600 | 613 | |
Product Data Sheet
