• Leakproof Structure
• High Durability
• Trouble Free Operation
Products
Industries
Services
Newsroom
About Us
Handling Section

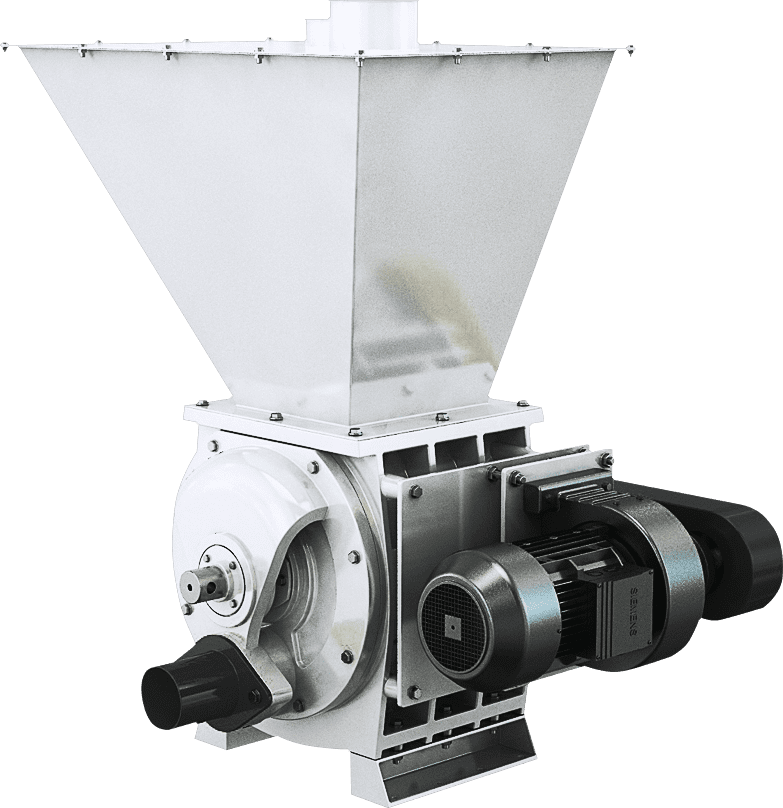

It is used for regular product feeding in pneumatic conveying lines.
Features & Advantages
|
Technical Features
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Capacity* (t/h) |
Weight (kg) |
Gross Volume (m³) |
|||||
| Wheat | Flour | Bran | Maize | Semolina | Net | Gross | ||
| KEKM 22/22 | 6.2 | 4.5 | 2.5 | 5.6 | 3.7 | 167 | 199 | 0.6 |
| KEKM 28/30 | 11.3 | 8.1 | 4.5 | 10.2 | 6.8 | 211 | 320 | 0.9 |
| KEKM 36/38 | 22.9 | 15 | 8.4 | 19 | 12.5 | 280 | 331 | 1.3 |
| KEKM 45/45 | 27.1 | 19 | 10.9 | 24.6 | 16.3 | 410 | 437 | 1.8 |
| KEKM 60/60 | 56.1 | 40.4 | 22.4 | 50.9 | 33.7 | 575 | 667 | 2.8 |
|
Dimensions (mm)
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Model | A | B | C | D | E | G |
ØJ |
|
| KEKM 22/22 | 555 | 300 | 340 | 1620 | 440 | 440 | 65 | |
| KEKM 28/30 | 660 | 355 | 420 | 1700 | 538 | 310 | 80 | |
| KEKM 36/38 | 787 | 440 | 490 | 1970 | 645 | 405 | 105 | |
| KEKM 45/45 | 844 | 561 | 574 | 2054 | 703 | 436 | 120 | |
| KEKM 60/60 | 1034 | 720 | 794 | 2138 | 888 | 600 | 180 | |
Product Data Sheet
