Milling Section

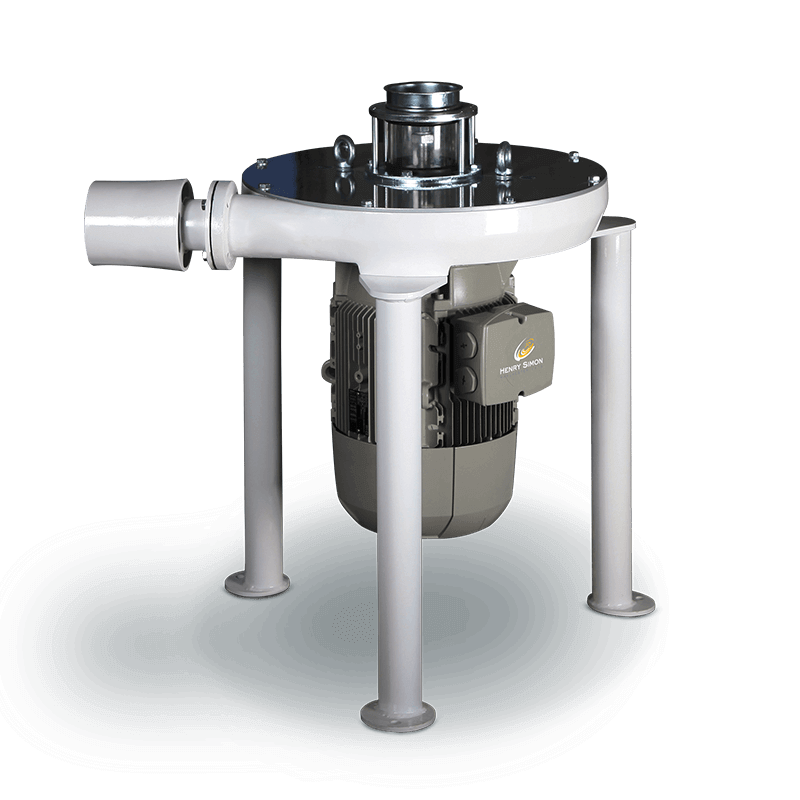

The Impact Detacher (HSDIKA) is used for grinding and product seperation in semolina passages, enabling increase the yield content of the flour.
Features & Advantages
|
Technical Features
|
|||||
|---|---|---|---|---|---|
| Model | Capacity (TPH) Flour | Motor (kW) |
Weight (Kg) | Gross Wolume (m3) |
|
| Net | Gross | ||||
| HSDIKA 51 (50Hz.) HSDIKA 45 (60Hz.) |
1 | 5.5 | 147 | 230 | 1.2 |
| 1.7 | 7.5 | 156 | 239 | ||
| 2.8 | 11 | 184 | 267 | ||
| 4 | 15 | 193 | 276 | ||
| HSDIKA 43/36 | 2.5 | 4 | 80 | 141 | 0.8 |
| 3.5 | 5.5 | 90 | 151 | ||
|
Dimensions (mm)
|
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | A | B | C | D | E | F | G | øH | øI | øj | K |
| HSDIKA 51 (50Hz.) HSDIKA 45 (60Hz.) |
700 | 806 | 620 std 820 1020 |
913 std 1113 1313 |
480 680 std 880 1080 1280 1480 1680 1880 2000 |
820-1020 std 1220-1420 1620-1820 2020-2220 2340 |
830 | 57 64 70 76 83 95 102 108 119 125 |
57 64 70 76 83 95 102 108 119 125 |
120 150 |
775 975 std 1175 1375 1575 1775 1975 2175 2295 |
| 940-1140 std 1340-1540 1740-1940 2140-2340 2460 |
|||||||||||
| HSDIKA 43/36 | 550 | 550 | 928 std 1128 1328 |
780-980 std 1180-1380 1580-1780 1980-2180 2300 |
550 | 790 990 std 1190 1390 1590 1790 1990 2190 2310 |
|||||
| 820-1020 std 1220-1420 1620-1820 2020-2220 2340 |
|||||||||||
