• Innovative design with rotor inclination and special rotor blades
• Hygienic, self cleaning design
• Simplification of the maintenance via hinged door access on each side.
• Available in two motor sizes to suit a range of duties

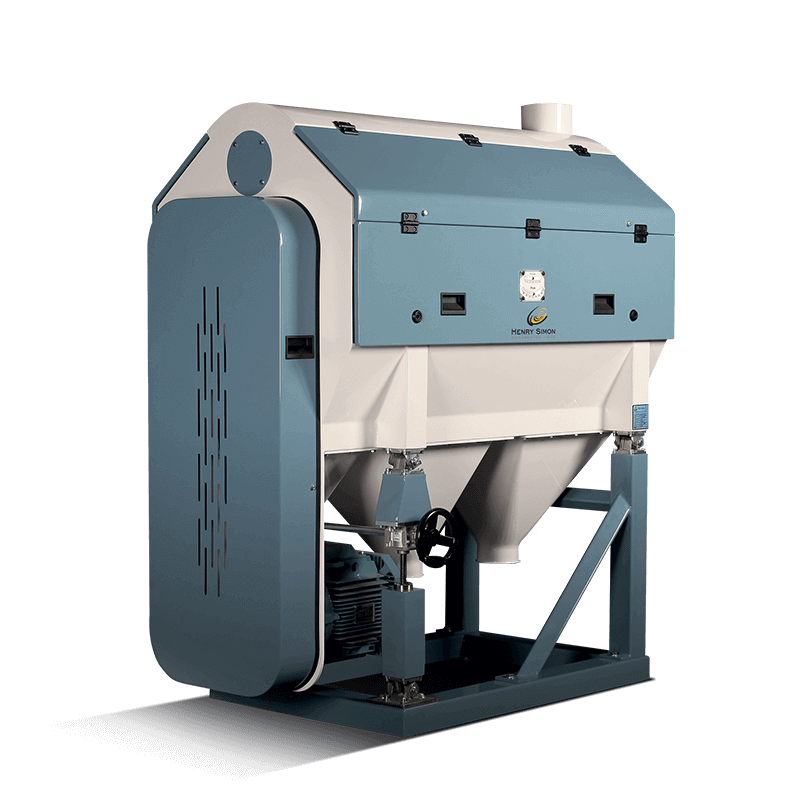

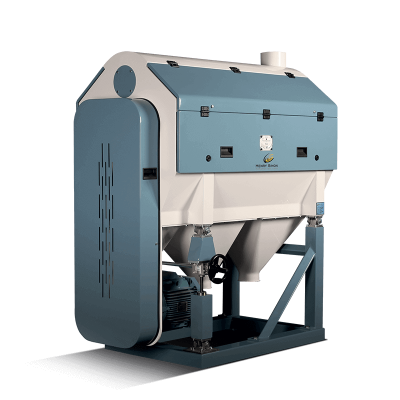

The Inclitec Bran Finisher (HSBFI), offers better efficiency in bran removal process compared to the conventional models. One of the main benefits of HSBFI is the precise operational control of the process via special rotor blades. With the special rotor blade design, HSBFI provides better efficiency in removing bran from flour. Moreover, the ability of changing the angle of the rotor (sieve) ensures better contact of the product with the rotor surface which also increases the efficiency of the operation.
• Innovative design with rotor inclination and special rotor blades
• Hygienic, self cleaning design
• Simplification of the maintenance via hinged door access on each side.
• Available in two motor sizes to suit a range of duties
Technical Features
|
||||||||
---|---|---|---|---|---|---|---|---|
Model | ||||||||
Capacity t/h |
Motor Kw |
Weights Kg |
Gross volume m3 |
|||||
Net | Gross | |||||||
HSBFI 75 | 1.5-1.8 | 7.5 | 512 | 684 | 4.2 | |||
HSBFI 110 | 2-2.5 | 11 | 587 | 728 | 5.4 |
Dimensions (mm)
|
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model | ||||||||||
A | B | C | D | |||||||
HSBFI 75 | 1528 | 763 | 1642 | 831 | ||||||
HSBFI 110 |
