Scale & Packaging Section

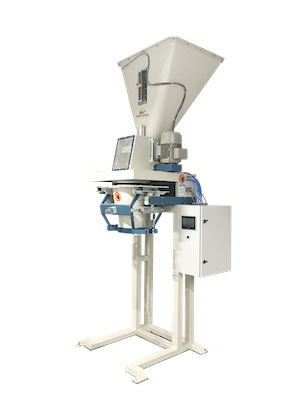

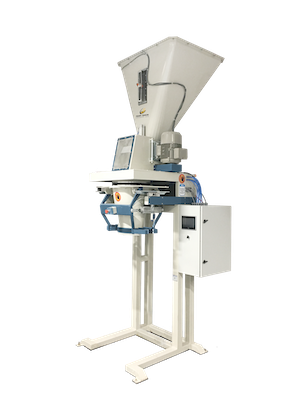

It is used for the packaging process of granular and powdered products in 10 kg, 25 kg, and 50 kg polypropylene bags, and ideal for low production capacities.
Features & Advantages
|
Technical Features
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Model |
Capacity* (bags/hour)
|
Motor Power (kW)
|
Weight (kg) |
Gross Volume (m³)
|
||||
| Net | Gross | |||||||
|
PTYA |
120 | 2.2 | 500 | 1200 | 40.1 | |||
|
Technical Features
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Model |
Capacity* (bags/hour)
|
Motor Power (kW)
|
Weight (kg) |
Gross Volume (m³)
|
||||
| Net | Gross | |||||||
|
PTYA |
120 | 0.75 | 750 | 1250 | 40.1 | |||
|

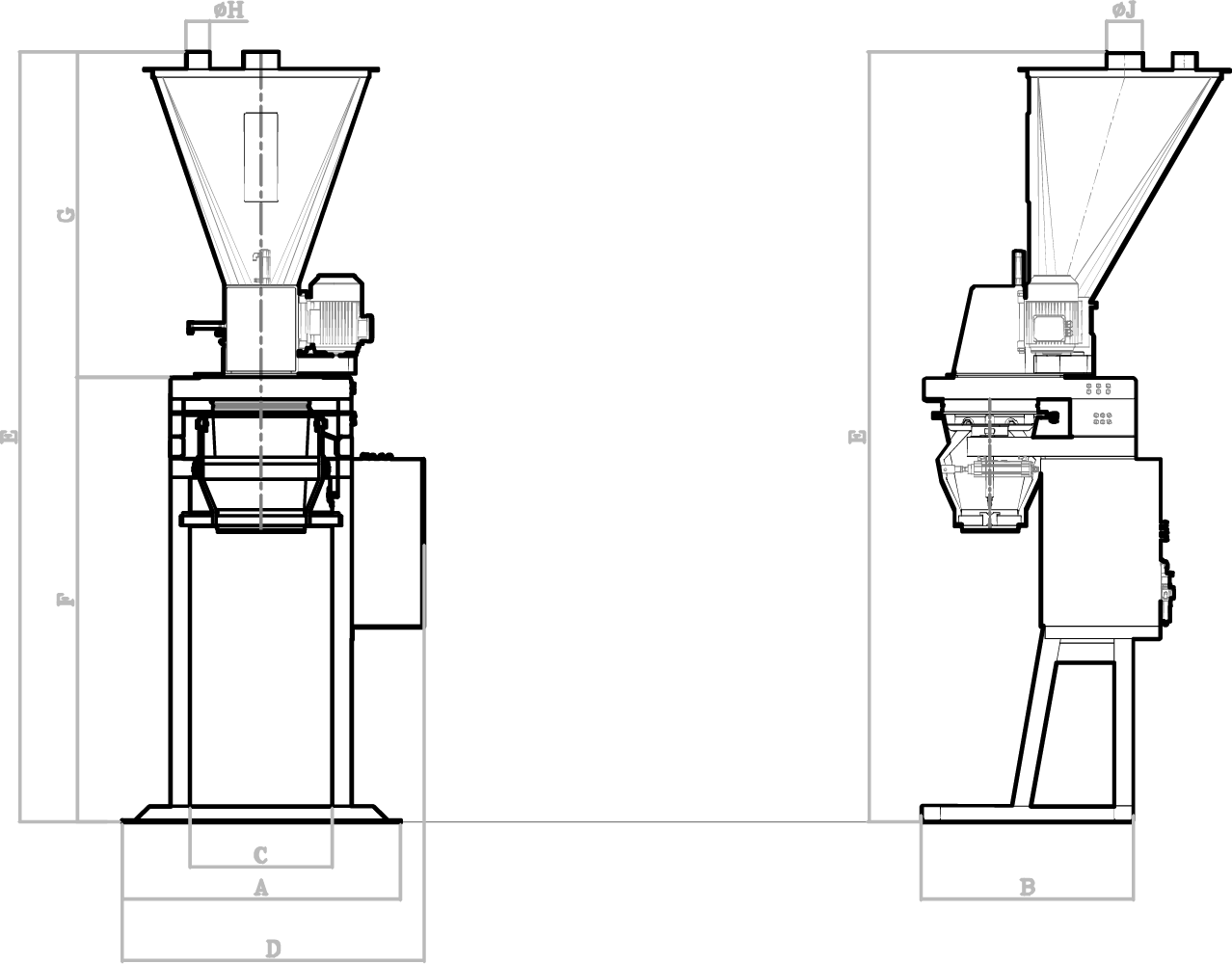

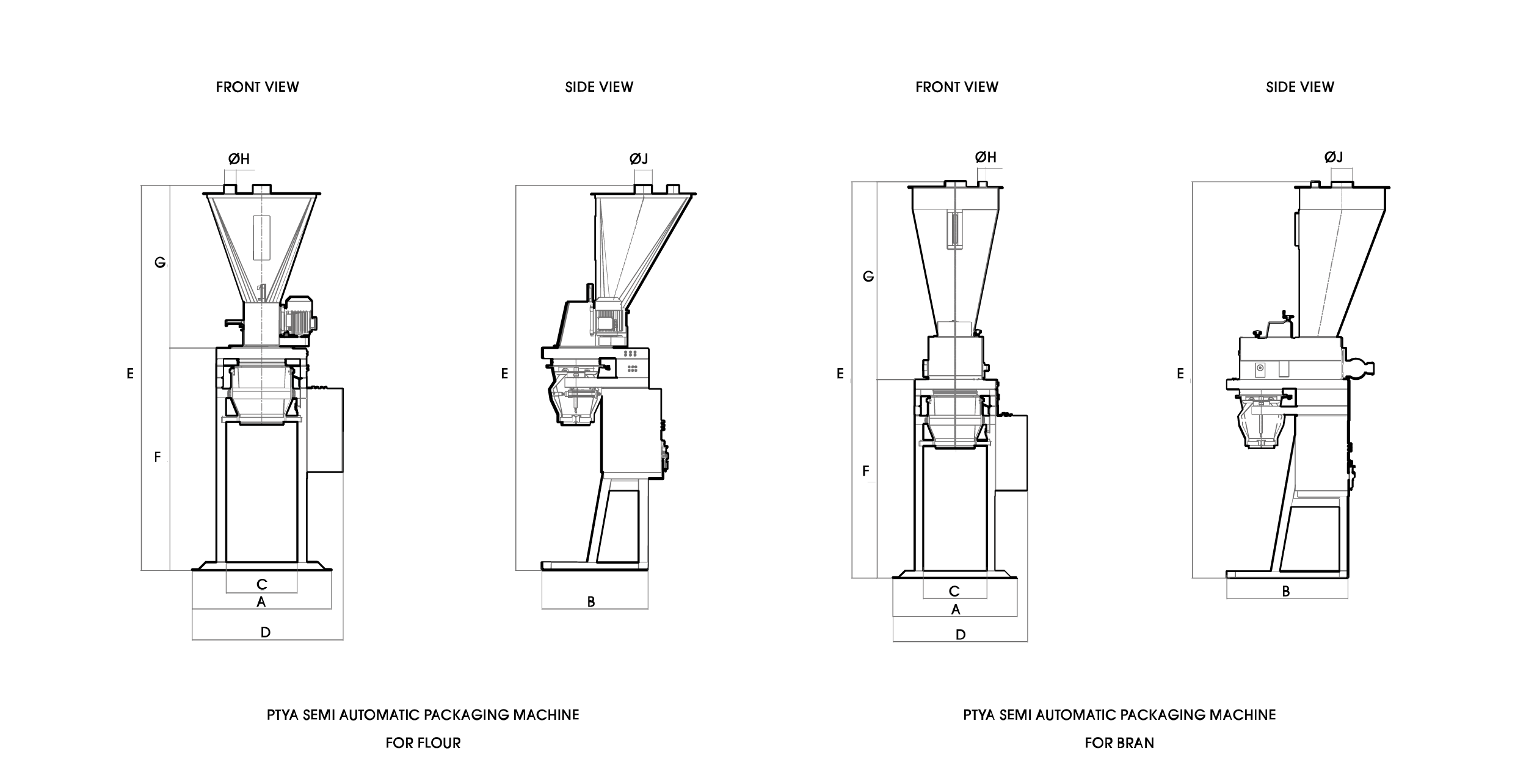

Dimensions (mm)
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | A | B | C | D | E | F | G |
ØH |
ØJ |
|
PTYA |
1166 | 890 | 596 | 1266 | 3224 | 1862 | 1362 | 100 | 150 |
|
Dimensions (mm)
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | A | B | C | D | E | F | G |
ØH |
ØJ |
|
PTYA |
1166 | 1135 | 596 | 1266 | 3715 | 1862 | 1853 | 80 | 200 |
